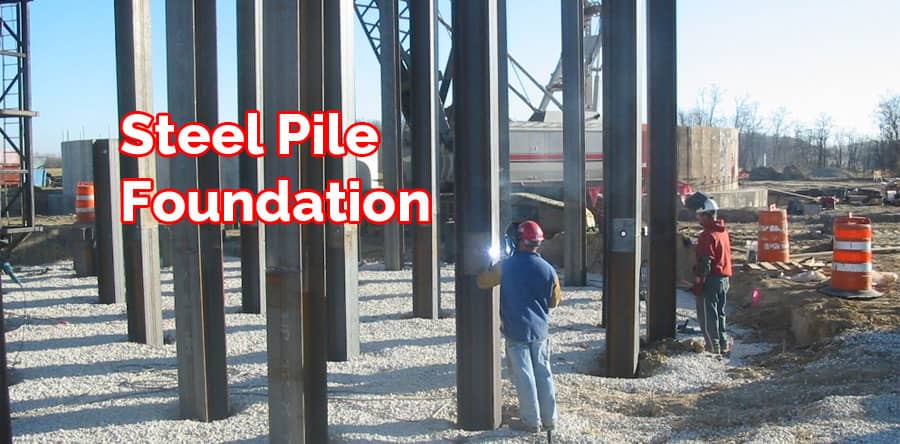

Foundation of Steel Piles
Precast piles and driven cast in piles utilize steel pipes. On account of precast or completely performed piles, there are two groupings, for example, empty little removal piles and solid piles. The empty little relocation piles utilize steel pipes when steel pile foundation is recommended. With regards to solid piles, steel H-piles are utilized.
On account of driven cast set up piles the fundamental arrangement is solid cylinder steel tube. If there should arise an occurrence of steel tubes, we utilize closed ended cylinder and open-ended cylinders.
Usually utilized steel piles are moved steel H area piles or pipe piles. The pipe piles have either an open or a closed end that is driven into the ground. I-segment or wide rib piles can likewise be utilized as pile foundation.
The H-sections are favored progressively over I-sections, as the H-segment has the same thickness for the web and the spine. On account of the I area, the thickness of the web is less contrasted with its spine thickness.
In the event that Q is the permissible auxiliary limit, A being the cross - sectional territory of the steel and the suitable worry of the steel given by fs, then:
Qall = A x fs
During the geotechnical examination the plan quality is resolved as Qdesign and this must be inside the Qall.
Types of Steel Pile Foundations
By and large, the steel piles can be sorted into the following categories: Screw Piles, Circle Piles, H-piles
Pipe Piles: Pipe piles are utilized to act as contact or end bearing piles. These piles are consistent and steel pipes that are framed by welding.
The driving of these piles can be completed with the assistance of an open or a close ended bottom. Henceforth, we have:
- Open End Piles
- Closed End Piles
- Open End Pipe Piles
These kinds of pipe piles are for the most part used to infiltrate a hard or a stone layer. These piles in the wake of driving are soaked in the dirt. The dirt that is inside the steel pipe is expelled by methods for packed air or by methods for water flying procedure. In the wake of driving the steel pipe to required profundity, the steel pipe is loaded up with cement of standard detail.
Closed End Pipe Piles: In this kind of pipe piles, a cone shaped component either made of steel or cast iron is appended to the open bottom by methods for welding.
This is the cone like shoe. When the pipe is driven into the dirt, the pipe is loaded up with satisfactory measure of cement.
The measurement of the pipe piles utilized can differ from 0.25m to 1.2m. The thickness of these pipe piles differs from 8 to 12mm. For pile foundation more noteworthy than 30 inches this sort of pile works best.
Screw Piles: The screw piles are made of steel or cast iron. These structure a long shaft that are ending toward the end as a screw base or a helix. The pole that is utilized in the screw piles can be either an empty one or a solid one.
The base of the screw has a breadth extending from 0.45 to 1.5m. The screw bottom is driven into the dirt by methods for an electric engine that help in simple infiltration into the layers.
The screw piles have extraordinary application in dirt or free soils. Screw piles in these regions help in expanding the bearing zone. The establishment of pile foundation in these kinds of soils are made simple by the steel screw heaping.
Circle Steel Piles: The circle steel pipe has a game plan like the screw piles, where it has a solid metal plate appended to the bottom. The pile sinks into the dirt while entering. Along these lines, to encourage the water flying procedure an opening is made at the bottom.
These sorts of piles can be utilized in delicate or sandy soil. This zone is appropriate as it permits the sinking of the circle piles during the water streaming procedure.
Plate piles are increasingly applied for marine developments, as these territories require for enormous measure of all out entrance.
H-Piles: Moved steel H-bars proceeded as a direction pile is one of the new innovations created in the heaping business. Hard driving of the pile into the dirt layers brings about a huge measure of effect powers and stresses. The H-piles can continue this worry to an enormous degree. H-piles are for the most part used to infiltrate a region with rock or some other hard layers.
Points of interest of H-Piles
- H- piles expend less space for capacity
- The treatment of H- piles are performed without any problem
- H-piles entrance can be performed closer to the current structure
- The measure of bizarre relocation caused close by territory during the infiltration of the H- piles are little.
- The grafting procedure in H- piles can be performed without any problem.
- The greatest profundity to which H-piles can be driven is 100m.
- H - piles play out the capacity of both grating and compaction piles
- The Main utilization of H- piles are in trestles, holding dividers, cofferdams and extensions.
Consumption of Steel Piles: The steel pipes independent of what type is utilized have extraordinary possibility for consumption. In such circumstances the piles can be covered with coal tar or consumption securing covering. Once in a while certain synthetic compounds or materials are encased in cement to forestall the consumption.
For more information, Please watch the video tutorial
View Source : CapX2020
