Building Construction: Base Isolation System
Base isolation is a best-in-class technology in which a suspension system is provided between the base and the main structure to isolate the structure (superstructure) from the base (foundation or substructure).
Base isolation can be replaced with seismic isolation in the context of seismic design of structures, meaning that the structure above the ground, which is typically affected by earthquakes, is isolated from the effects of earthquake powers by presenting an instrument that will help the structure hover.
Base isolation is a pretty straightforward concept to grasp. It could be explained by saying that a bird flying during an earthquake is unaffected. In other words, if a structure is drifting on its base, the development of the ground won't affect it.
Base isolation is necessary since wind and earthquakes are the two loads that demand a structure be designed sideways. Once more, earthquake load is uncontrollable, and designing a structure for a variable seismic interest is not practical. To recognise an interest and make sure the limit is higher than the interest is the only remaining realistic methodology.
The inertial power brought on by the earthquake are legitimately related to the structure's mass and the earth's acceleration. The most common method of managing seismic interest is to increase the structure's flexibility or adaptability. To surpass interest, a specialist must raise the bar.
Base isolation uses a different approach, such as lowering seismic interest instead of raising the limit. Although it is impossible to control ground movement, we can change the focus on a structure by preventing or reducing the motions that are transferred from foundations to that structure.
Guideline of Base Isolation
The essential popular in the back of base isolation is that the response of the shape or a shape is adjusted to such an quantity that the floor underneath is suit for transferring without transmitting negligible or no movement to the shape above. a total division is viable just in an excellent machine. In a certifiable situation, it's far crucial to have a vertical assist to move the vertical hundreds to the base.
the general displacement of floor and the shape is 0 for an entirely rigid, 0 length structure, for the reason that rushing up instigated within the structure is the same as that of ground motion. at the same time as in a perfect bendy shape, there's no growing pace actuated inside the structure, hence relative displacement of the structure may be equivalent to the floor displacement.
No structure is totally rigid or bendy, therefore, the reaction of the shape will be between the 2 clarified previously. maximum extreme increasing speed and displacements are a factor of earthquakes for durations among 0 to limitlessness. at some stage in earthquakes there may be a scope of periods at which dashing up inside the structure could be intensified past most extreme ground increasing pace, however relative displacements might not surpass pinnacle floor displacements. Base isolation is the ideal approach to cook this, by lessening the exchange of motion, the displacement of constructing is controlled.
Displacement takes place at CG of the structures for fixed base structures, as a way to be approx. two-1/3 stature for systems and at isolation plane for base disengaged structures with lesser displacement in the shape. The response of a base confined structure and a structure with out base isolation may be delineated as appeared within the determine under. The displacement and quickening is limited via base isolation.
Fundamental prerequisites of an isolation system:
- Flexibility
- Damping
- Protection from Vertical or other service loads.
Different Base Isolation Systems
All things considered, what sort of machine can accomplish this, opposing the gravitational draw of earth? A greased up sliding floor? Or then again a strong attractive levitation? these may sound proper however are not the precise designing association. It ought to be a gadget that's equipped for restricting the structure below strong whirlwind and gravitational force.
No matter the reality that an excellent association is yet to be found or advanced, there are a couple of purposeful isolation components which are widely utilized inside the field of earthquake building. Which implies that those structures are fit for diminishing the seismic hobby of the shape. Six widespread types of Isolators are as follows.

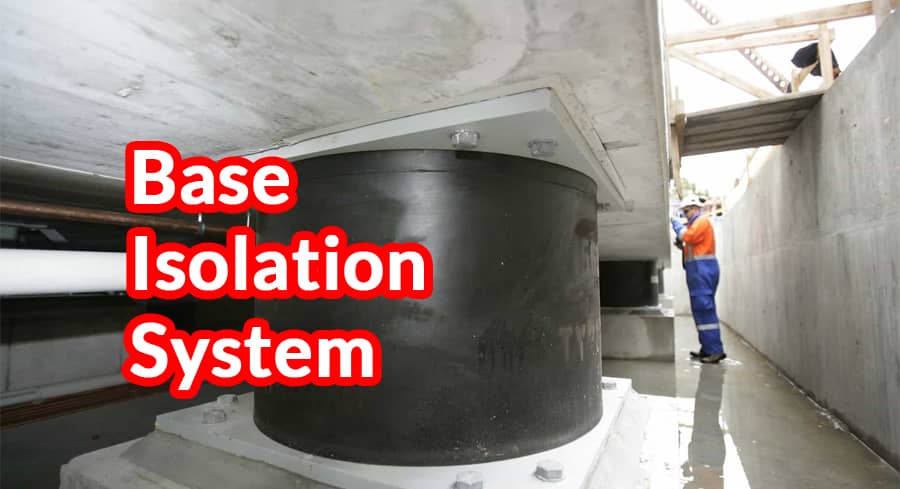

Elastomeric Rubber Bearings
Bearings shaped of flat layers of engineered or feature rubber in moderate layers certain among steel plates. those bearings are prepared for helping high vertical masses with little distortions. those bearings are bendy underneath parallel loads.
Metallic plates preserve the rubber layers from protruding. Lead facilities are given an increment damping restriction as plain elastomeric bearings do not provide noteworthy damping. they are commonly smooth stage way and tough vertical way.
Roller and Ball Bearings
For isolation applications in hardware isolation, roller and ball bearing are utilized. It incorporates round and hollow rollers and balls. It is adequate to oppose service developments and damping relying upon the material utilized.
Springs
Metallic springs are in all opportunity utilized in mechanical programs as in roller bearings. It is not obtained in auxiliary packages seeing that it's far flexible in both vertical and even headings. this could construct service redirections.
Sliding Bearing
Sliding systems with a predefined coefficient of rubbing can supply isolation by way of proscribing growing pace and powers which are moved. Sliders are match for giving obstruction below carrier situations, flexibility and electricity displacements by means of sliding development.
Formed or spherical sliders are regularly desired over degree sliding systems attributable to their reestablishing effect. degree sliders provide no reestablishing electricity and there are doable consequences of displacement with consequential convulsions.
Extra: Soft-story and Sleeved Piles and Rocking Isolation systems are other significant BIS systems.
