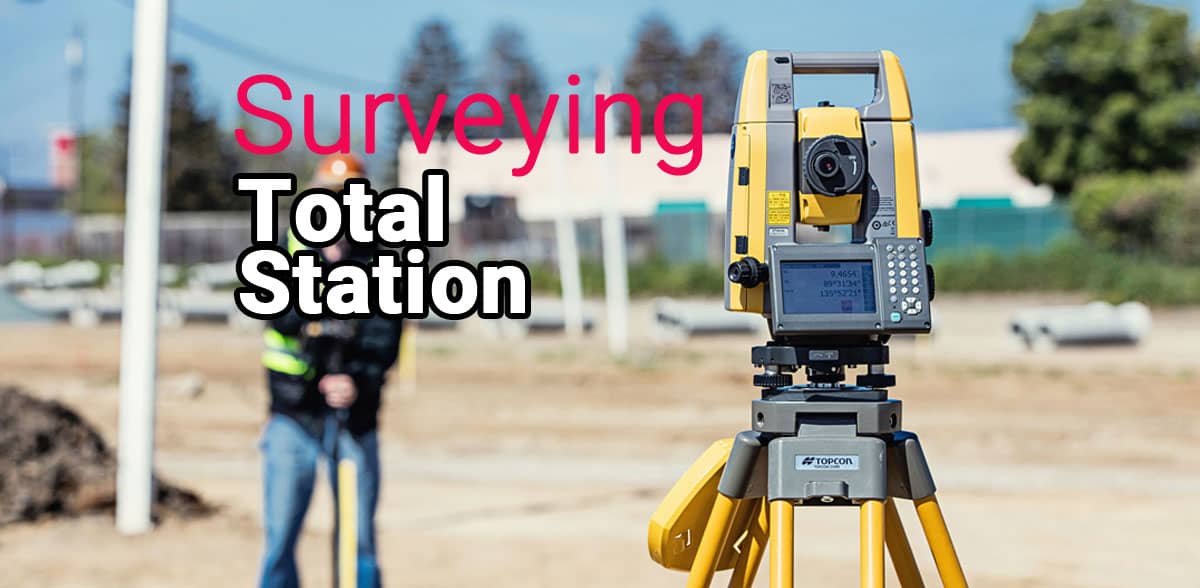

Total Station Surveying
Surveying is one of the maximum essential jobs which have to be completed earlier than beginning a brand new creation project. The overall station is the modern day device these days maximum usually utilized by the surveyors at the process location.

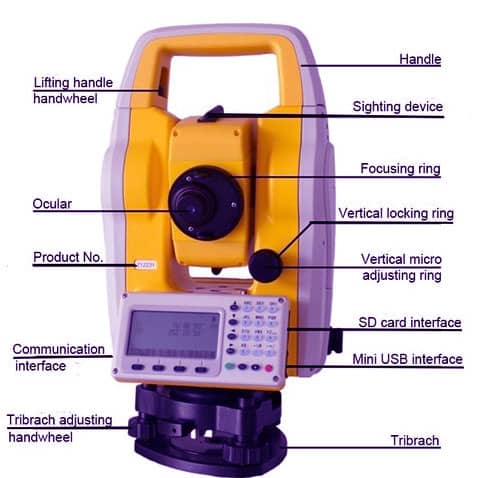

The overall station includes an digital theodolite, an digital distance measuring device (EDM), and a microprocessor having a reminiscence unit. By the use of this device it's far viable to discover the coordinates of a reflector adjusting the cross-hair of the device and on the equal time measuring the vertical angles, horizontal angles, and slope distances. A microprocessor offers with the recording, readings, and essential calculation of measurements.
The important blessings and downsides of the full station are as follows
Advantages Of Total Station
- Quick setup of the device at the tripod via way of means of making use of the laser plummet.
- Programmed with on-board place computation for computing the place of a field.
- It helps nearby languages.
- It suggests the graphical view of land and plots.
- No recording and writing errors.
- It offers extra correct measurements than different traditional surveying instruments.
- Data may be stored and transferred to a PC.
- It has an included database.
- Computerization of vintage maps.
- All in a single and multitasking device, from surveying to GIS advent via way of means of the use of the precise software.
- Faster paintings, saves time, brief completing off the process.
Disadvantages Of Total Station
- The device is more expensive than different traditional surveying instruments.
- It is probably tough for the surveyor to analyze and test the paintings whilst surveying.
- Working with the full station isn't so easy, as extra professional surveyors are required to behavior a complete station survey.
- To test the survey paintings very well it might be vital to return back returned to the workplace and put together the drawings via way of means of the use of the proper software.
