All About Prismatic Compass Surveying

Prismatic compass surveying is one of the most fundamental and widely used methods in land surveying. It is highly valued for its simplicity, portability, and efficiency in determining bearings, angles, and directions on the field. This method has been applied extensively in engineering, construction, and geographical studies, making it a cornerstone of basic surveying practices.

What is Prismatic Compass Surveying?

Prismatic compass surveying is a method of surveying in which a prismatic compass is used to measure the bearings of survey lines directly. Unlike other compasses, the prismatic compass is designed with a prism attached to the eye-piece, which enables simultaneous reading of the bearing and sighting of the object. This feature greatly enhances accuracy and efficiency in the field.

It is commonly employed in preliminary surveys, reconnaissance work, and small-scale mapping, where quick and approximate results are sufficient.

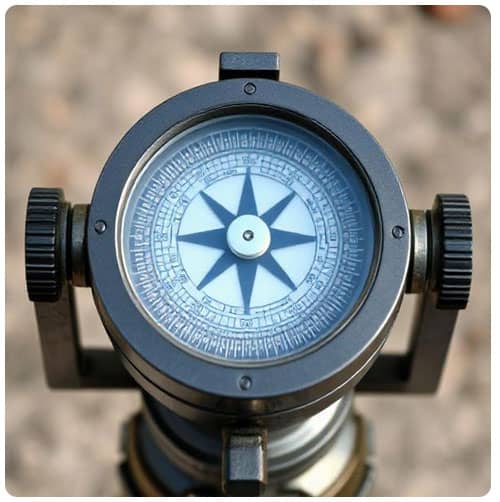

Construction and Parts of a Prismatic Compass

The prismatic compass consists of several important parts that contribute to its functioning.

• Magnetic Needle - The most critical component, balanced on a pivot to align with the magnetic meridian.
• Graduated Circle - A circular scale marked with degrees, divided clockwise from 0° to 360°, allowing direct bearing readings.
• Prism - Positioned near the eye-piece; it magnifies and makes the readings legible while sighting.
• Sighting Vane and Hairline - Used to accurately sight the object or station.
• Pivot and Cap - The pivot supports the magnetic needle, while the cap protects it from dust.
• Lifting Pin - Prevents wear of the pivot by lifting the needle when not in use.
• Tripod Stand - Provides stable support for the compass during survey work.

Principle of Prismatic Compass Surveying

The working principle is based on the magnetic properties of the earth. The magnetic needle aligns itself along the magnetic north-south direction. By sighting an object and simultaneously reading the graduated circle through the prism, the surveyor can obtain the magnetic bearing of the line connecting the instrument station to the object.

Types of Bearings in Prismatic Compass Surveying

There are two main systems used in compass surveying:

1. Whole Circle Bearing (WCB)
   • Bearings are measured clockwise from 0° to 360° with respect to the magnetic north.
   • Example: 90° for East, 180° for South, 270° for West.
2. Reduced Bearing (RB) or Quadrantal Bearing (QB)
   • Bearings are measured with reference to either North or South, towards East or West, and vary from 0° to 90°.
   • Example: N 45° E or S 60° W.

Procedure of Prismatic Compass Surveying

The process of conducting a survey with a prismatic compass involves several systematic steps:

• Station Selection - Choose suitable stations to cover the entire area.
• Setting the Compass - Fix the instrument on a tripod, ensuring it is level and steady.
• Centering - Position the compass directly over the survey station using a plumb bob.
• Leveling - Adjust the tripod legs to bring the graduated disc into a horizontal position.
• Taking Bearings - Sight the ranging rod at the forward station and read the bearing through the prism.
• Recording Readings - Note the forward and back bearings for accuracy.
• Plotting - Transfer the measured bearings onto paper to prepare a survey plan.

Sources of Errors in Prismatic Compass Surveying

Errors can occur due to multiple factors and can affect the accuracy of the survey:

• Instrumental Errors
  • Imperfect balancing of the needle.
  • Incorrect graduation of the scale.
  • Defective prism or sighting vanes.
• Natural Errors
  • Local attraction caused by magnetic materials nearby (e.g., iron objects, electric wires).
  • Variations in the earth's magnetic field.
• Personal Errors
  • Mistakes in sighting.
  • Parallax errors while reading.
  • Recording mistakes in the field book.

Precautions in Prismatic Compass Surveying

To minimize errors, surveyors must follow important precautions:

• Always check and eliminate local attraction before taking bearings.
• Ensure the compass is perfectly centered and leveled.
• Avoid carrying metallic objects close to the instrument.
• Take both forward and back bearings for each line to cross-check.
• Conduct frequent calibration of the compass.

Uses of Prismatic Compass Surveying

Prismatic compass surveying finds widespread applications, especially in areas where quick and approximate results are required.

• Reconnaissance Surveys - For preliminary exploration of new areas.
• Military Mapping - Due to its portability and quick results.
• Topographical Surveys - For small-scale maps of terrains and landscapes.
• Engineering Projects - Roads, railways, and pipeline surveys in initial stages.
• Forestry and Mining - Locating boundaries and resources.

Advantages of Prismatic Compass Surveying

• Lightweight and Portable - Easy to carry in the field.
• Quick Results - Bearings can be read instantly.
• Simplicity - Simple design, requiring minimal training.
• Cost-Effective - Economical compared to advanced surveying instruments.
• Simultaneous Reading and Sighting - Improves efficiency and accuracy.

Limitations of Prismatic Compass Surveying

Despite its usefulness, the method has certain limitations:

• Magnetic Influence - Readings are affected by local attraction.
• Limited Accuracy - Suitable only for small-scale surveys.
• Short Range - Ineffective for large projects requiring high precision.
• Dependent on Magnetic North - Cannot be used where magnetic variation is high.

Comparison of Prismatic Compass with Other Surveying Instruments

Conclusion

Prismatic compass surveying remains an indispensable tool in the field of surveying due to its simplicity, speed, and efficiency. While it cannot compete with modern instruments like theodolites and total stations in terms of precision, it continues to be valuable for preliminary surveys, reconnaissance work, and small-scale mapping projects. A strong understanding of its working, errors, and precautions ensures reliable results in practical applications.
