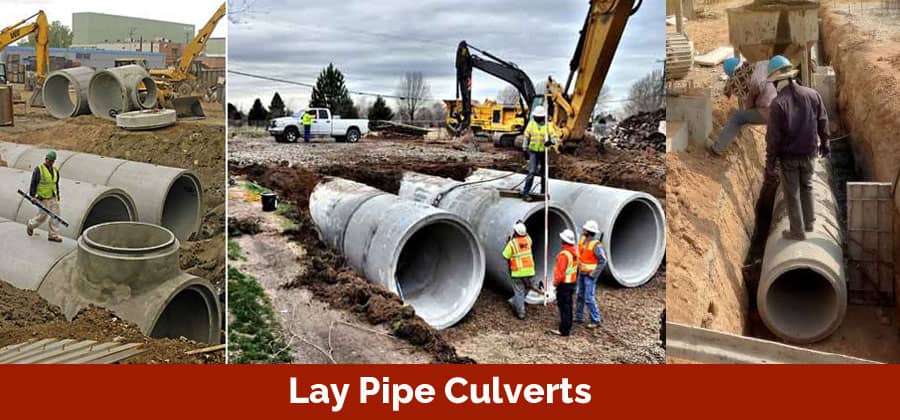

A Guide instruct to Lay Pipe Culverts

Pipe culvert is a passage structure built utilizing pipes under roads or railways to give cross seepage or to take electrical or different links starting with one side then onto the next. Pipe culvert, box culvert, and curve culvert are the normal sorts of culverts utilized under roadways and railroads.

In this article, we talk about the excavation, bedding, laying, jointing, and inlaying strategy of pipe culverts.

Excavation

The foundation for pipe culverts will be uncovered to the lines and levels, as appeared in the drawings. The pipes will be set either in the shallow excavation of the normal ground or in open channels made in existing banks.

At the spots where the stature of fill surpasses multiple occasions the outer distance across of the pipe, the dike will be raised to a level over the highest point of the pipe, and to a width at the very least multiple times the measurement of the pipe.

The additional width of the excavation in channels will be at least 150mm or one-fourth of the measurement of the pipe, whichever is more. At no spot, the additional width will be more than 33% the distance across of the pipe.

The vertical sides of the channel will be as vertical as could be expected under the circumstances. Assuming delicate, supple, or other flimsy soil is experienced during excavation, such unacceptable material will be evacuated to such length, width, and depth as coordinated by the specialist.

The inlaying of the excavation of the pipe culvert will be finished with granular material, which will be appropriately molded and completely compacted up to the predetermined level. Where bed-rock or rock layers is experienced, 200mm profound excavation will be completed from the base degree of the pipe, and all stone/rocks around there are evacuated and the space is loaded up with earth, liberated from stone or divided material.

The refill will be formed to the prerequisites and compacted to offer sufficient help for the pipe. The exhumed channels will be kept liberated from water until the pipes are introduced, and the joints have solidified.

Bedding

The reason for the bedding surface is to give a firm foundation of uniform thickness all through the length of the culvert and will adjust to the predefined levels and grade. The bedding of pipe culvert can be done in the accompanying two strategies:

A. Five star Bedding: In five star bedding, the pipe will be laid on a consistent layer of all around compacted granular material and formed concentrically to fit the lower some portion of the pipe outside for at any rate 10% of its general tallness.

The bedding material will comprise of all around reviewed granular material or sand passing 5.6 mm strainer. The thickness of the compacted bedding layer will not be under 75mm.

B. Concrete Cradle Bedding: When demonstrated in the drawings, the pipe will have relations within a support developed of concrete having a blend not more slender than M-15 adjusting to segment 1700. The laying of pipes will be done on the concrete bedding before the concrete has set.

Pipe Laying

The pipes will be established after the framework is very much relieved and affirmed by the designer in-control.

In places where at least two pipes are to be laid adjoining one another, the pipes will be isolated by a separation of a base 450 mm or equivalent to a large portion of the width of the pipe.

Appropriate consideration will be taken while lifting, stacking, emptying, and bringing down concrete pipes at a plant or site with the goal that the pipes don't endure any undue basic strain, any harm because of fall or effect. The bringing down and situating of the pipe will be finished with the utilization of a tripod?pulley game plan or just by physical work to limit harm to the pipe.

Jointing

The pipes will be jointed by two strategies, to be specific, collar joint or by flush joint.

In collar joint, the collars will be of 150 to 200mm wide RCC and will have a similar quality as the pipes to be jointed. The caulking space will be in the scope of 13 and 20 mm relying upon the distance across of the pipe.

In the flush joint, the flush joint might be an outside flush joint or an inward flush joint. In the two cases, the finishes of the pipes will be exceptionally molded to shape a self-focusing joint with a jointing space 13 mm wide.

The jointing space will be loaded up with 1:2 concrete mortar, blended adequately dry to stay in position when constrained with a trowel or rammer. The pipes will be jointed to such an extent that the bitumen ring of one pipe will set into the opening of the following pipe.

Inlaying

The inlaying of the channels will be completed following the pipes are put, and the jointing material has solidified. The soil utilized for inlaying will be without perfection from rocks, enormous roots, inordinate measures of grasses or other vegetable issues, and bumps.

The refilling up to 300 mm over the highest point of the pipe will be completed cautiously, and the soil will be slammed, packed, or vibrated in layers not surpassing 150 mm, specific consideration being taken to unite the materials under the dispatches of the pipe altogether.

Legitimate pneumatic or light mechanical packing hardware must be utilized for compaction. The filling of the channel on the two sides of the pipe will be done at the same time with the goal that inconsistent weights don't happen.

If there should arise an occurrence of the high bank, subsequent to topping the channel off to the highest point of the pipe in the above-said way, a free fill will be set over the pipe to a depth equivalent to the outer measurement of the pipe and compacted.
