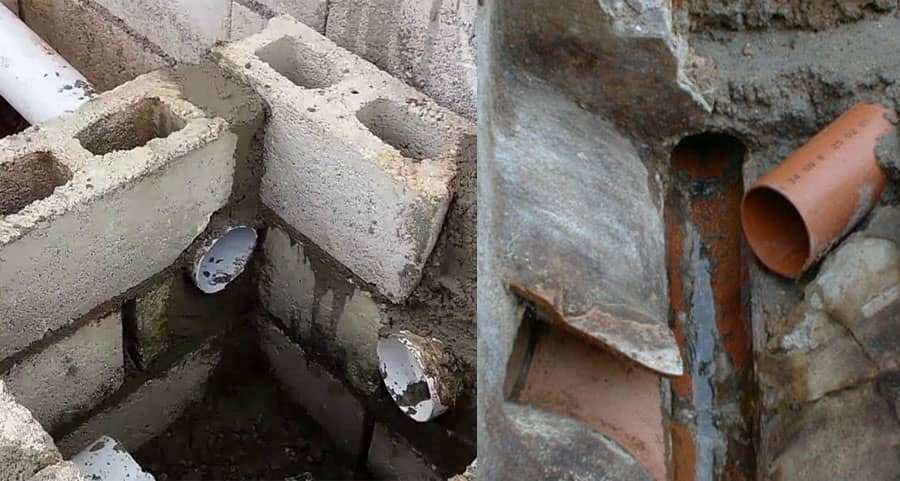

A Brief Note on Making a Manhole
A manhole or an assessment load is an underground unit built to give access to the utilities like a sewer system, waste system, and so on. Thus, with the assistance of a manhole, underground utilities are assessed, adjusted, cleaned, and kept up.
Sidelining in manholes alludes to the way made out of concrete mortar to coordinate the squandered water in a specific way and stop the sprinkling of waste, which thus harms the manhole.
The standard nature of blocks utilized in the development of manholes will be of class 7.5N with concrete mortar of 1:4 proportion. For angled sort and round manholes, the concrete mortar proportion will be 1:3 (1 concrete: 3 fine sand).
Manholes up to a depth of 4.25m, the dividers of the manhole will be manufactured utilizing one block thickness. Beneath the depth of 4.25m depth, manholes will be assembled utilizing one and a half block, and if the manhole is underneath 9.75 m, the dividers of the manhole will be developed of two block thickness.
Particular development of developing manholes.
Excavation
The excavation for the manhole will be according to the measurements and levels determined in the arrangement or drawings. The excavation width will incorporate the fundamental working space for availability for the artisan to work unreservedly underneath the ground.
Bed Concrete
A bed cement of 1:4:8 will be laid over which the manhole will be built. The base thickness of bed concrete will be 20cm and 30cm for manholes of depth up to 4.25m or more 4.25m, separately.
On account of free soil, uncommon establishments will be developed to help the manhole.
Block Masonry
The standard nature of blocks utilized in the development of manholes will be of class 7.5N with concrete mortar of 1:4 proportion. For angled sort and roundabout manholes, the concrete mortar proportion will be 1:3 (1 concrete: 3 fine sand).
Up to a depth of 4.25m, the dividers of the manhole will be assembled utilizing one block thickness. Manholes beneath the depth of 4.25m depth in normal soil will be manufactured utilizing one and a half block, and if the manhole is underneath 9.75 m, the dividers of the manhole will be built of two block thickness.
The completion of the block workmanship on the outside face will be done smoothly. The joint of the workmanship and channel will be uniquely treated to make it superbly watertight.
The overabundance shaft in the round manholes will be corbelled deep down at the top to diminish its size to the cover casing to be fitted.
Mortar and Pointing
Within the block workmanship of the manhole will be put with a 12mm thick 1:3 concrete mortar. For a round or angled kind of manhole, the putting will be totally up to the crown level with concrete mortar 1:2.
For the most part, the external side of the manhole isn't put, yet on account of soaked soil, the outside surface of the manhole will likewise be put with a 12 mm thick concrete mortar 1:3. Within the put surface will be waterproofed with a waterproofing specialist.
Channel and Benching
Sidelining in manholes alludes to the way made out of concrete mortar to coordinate the squandered water in a specific way and stop the sprinkling of waste, which thus harms the manhole. The directs and sidelining in a manhole will be built utilizing concrete cement of proportion 1:2:4. The completion for the channel and sidelining will be easily and perfectly wrapped up.
Hassocks
The hassocks in the manholes are accommodated simple availability if there should be an occurrence of cleaning and Maintenance. Hassocks are given in the manholes if the depth of the manhole surpasses more than 0.8m.
The hassock will be of PVC or gentle steel. Any sort of hassock, either PVC or mellow steel, will be implanted 200mm somewhere down in the 200x200x100 mm square of cement of 1:3:6.
The hassock will be set stunned horizontally and 40cm separated vertically. The hassock will ensure 100mm past the inward surface of the manhole dividers.
The primary footstool will be set 450mm beneath the manhole cover. The gentle iron footstool will be painted with coal tar to shield it from erosion.
Manhole Covers and Frames
The manhole cover will be gas tight and watertight. The manhole covers and casings will be of the accompanying four evaluations, types, and spot of utilization. After consummation of the development of the manhole, the covers will be fixed utilizing thick oil.
