What is Lap Length and How to Calculate It?

In reinforced concrete structures, the strength and durability of a building depend heavily on the proper anchorage and continuity of reinforcement bars (rebars). One of the most important design considerations in this regard is lap length.

Definition of Lap Length

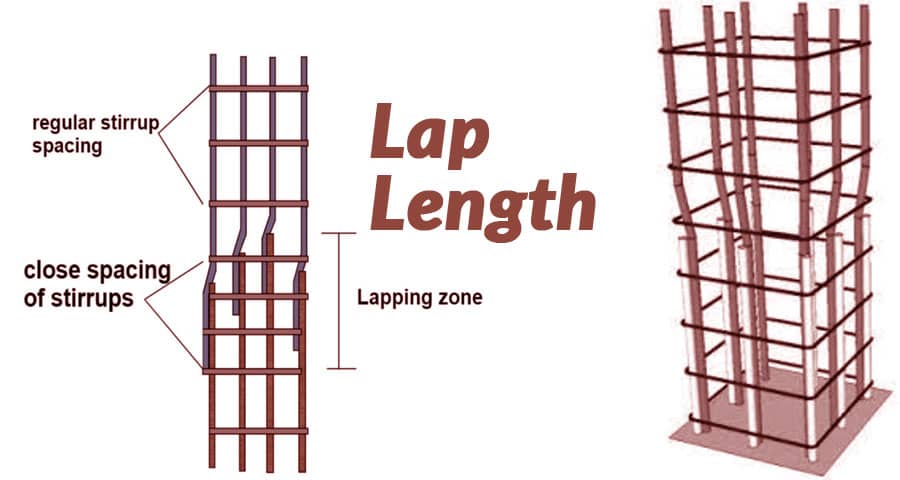

Lap length refers to the length over which two rebars are overlapped and tied together to safely transfer stress from one bar to another. Since reinforcement bars come in limited lengths, longer spans in beams, slabs, or columns often require joining multiple bars. To ensure structural continuity and effective stress transfer, the rebars must overlap by a certain length, known as the lap length.

Lap length is not just a random value - it is carefully calculated based on codes, structural requirements, bar diameters, grade of concrete, and types of stresses acting on the structure.

Importance of Lap Length in Reinforced Concrete

1. Structural Continuity - Provides a seamless transfer of loads and stresses across reinforcement bars.
2. Strength and Durability - Prevents weak zones in the structure where reinforcement ends.
3. Economical Design - Eliminates the need for using excessively long rebars, which are difficult to transport and handle.
4. Safety - Ensures that structural members behave as a single unit without premature failure.

Factors Affecting Lap Length

Several factors influence the calculation of lap length:

• Grade of Steel - Higher grade rebars require more lap length due to higher bond stresses.
• Concrete Strength - Stronger concrete reduces lap length requirements.
• Bar Diameter - Larger diameter bars need longer lap lengths.
• Type of Stress - Tension and compression stresses require different lap length considerations.
• Location of Lapping - Laps in tension zones differ from those in compression zones.
• Codes of Practice - IS 456:2000, ACI, and Eurocode specify standard guidelines.

Lap Length According to IS 456:2000

The Indian Standard IS 456:2000 provides clear guidelines for lap length in reinforced concrete construction.

• For Tension Members:
  The lap length should be equal to the development length (Ld), but not less than 30 times the bar diameter (30f).
• For Compression Members:
  The lap length should be equal to the development length (Ld), but not less than 24 times the bar diameter (24f).
• For Welded Laps or Mechanical Connections:
  Lap length can be reduced, but welding must be done carefully to avoid brittle failure.

Formula for Lap Length

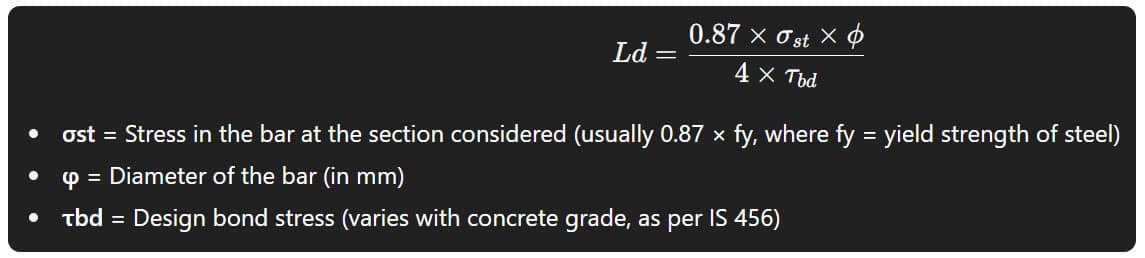

The general formula for lap length is:

Lap Length (Ll) = Development Length (Ld)

Where,

Lap Length in Tension and Compression

Lap Length in Tension

• Must be greater of Ld or 30f.
• In flexural members like beams and slabs, where rebars are subjected to high tensile stresses, sufficient lap length ensures effective stress transfer.

Lap Length in Compression

• Must be greater of Ld or 24f.
• In columns and struts, rebars are mainly in compression, hence lap length is slightly less than tension members.

Standard Values of Lap Length

Here are some commonly used lap length values in practice (as per IS 456:2000):

Lap Length for Different Structural Members

1. Beams

• Laps should be placed away from points of maximum bending moment (preferably near supports).
• Recommended lap length: Ld or 30f in tension.

2. Slabs

• Laps are usually provided at 1/3rd span from supports.
• Lap length similar to beams, ensuring proper stress distribution.

3. Columns

• Lap length in compression: Ld or 24f.
• Should be staggered if multiple bars are lapped in the same section to avoid congestion.

4. Footings

• Lap length depends on bar diameter and stress type, usually following column guidelines.

Best Practices for Providing Lap Length

1. Stagger Laps - Do not lap all bars at the same location; stagger them to maintain structural integrity.
2. Avoid Laps in Maximum Stress Zones - Place laps away from high bending moment areas.
3. Tie Properly - Secure rebars with binding wire to ensure laps remain in position during concreting.
4. Mechanical Couplers - For large diameter bars, use couplers instead of long lap lengths to save space and material.
5. Follow Codes - Always design lap length based on the latest standards and structural requirements.

Difference Between Lap Length and Development Length

• Development Length (Ld): Minimum length of bar required to develop full strength of the section by bond with surrounding concrete.
• Lap Length (Ll): Overlap length of two bars for stress transfer, which is generally equal to development length.

In short, lap length is provided to join two rebars, while development length ensures bond strength between rebar and concrete.

Conclusion

Lap length is one of the most crucial design parameters in reinforced concrete construction. It ensures proper stress transfer between reinforcement bars, maintaining structural strength and safety. Depending on whether the member is in tension or compression, lap length is calculated using development length, bar diameter, and bond strength of concrete. Adhering to standard guidelines like IS 456:2000 ensures durability, economy, and structural reliability.
